Model: LHJ-50-100 type
Specification: conventional, non-standard, can accept the user's special requirements design (can accept customer requirements custom tri-folding, quadruple folding door)
Material: door frame adopts XR aluminium alloy; door page adopts colour steel plate, baking paint steel, paint-free steel
Filling: flame retardant paper honeycomb, aluminium honeycomb, rock wool sandwich, polyurethane foam
Windows: square, oval, single glass, double printed glass
Surface: spraying, oxidation, sand whitening, electrophoresis, etc.
Hardware: A6 type fireproof lock, SS sand steel one-piece lock, ball pressure handle lock.
Seal: compression type leather strip, door lifting and sealing strip.
Colour: Baked on request
Technical parameters
| Door frame shape | Flat frame, wrap-around frame, clamping type, plug-in type (customised according to customer requirements) | Door thickness:40mm,50mm | ||||
| Material | Imported and Domestic MDF: 4.0~5.0mm, door frame adopts YT aluminium alloy series. | |||||
| Filling | Flame retardant paper honeycomb | Fire-retardant aluminium honeycomb | Rock wool | Polyurethane foam | ||
| Door Window | Square glass | Oval glass | Outer square and inner round glass | Single and double glazing | ||
| Hardware | Locks: Split actuator locks, continuous actuator locks, elbow pressure locks, escape locks, bumper locks, etc. | |||||
| Hinge: YT stainless steel dismounting type, YT aluminium alloy dismounting type, etc. | ||||||
| Sealing device: self-adhesive door leaf, door frame embedded type, door bottom automatic lifting type. | ||||||
| Surface treatment | Bridged surface, glossy surface (colours are user selectable) | |||||
| Wind pressure resistance P3(KPa) |
2.8 | Pneumatic | 100.8KPa | Air tightness performance | q1=1.0 | -q1=0.6 |
| q(m3/(m-h)) | q2=2.1 | -q1=1.5 | ||||
| Door weight ㎡/KG |
Paper honeycomb core | Aluminium honeycomb core | Rock wool core | Polyurethane core | ||
| 21.5KG | 22.3KG | 24.5KG | 26.0KG | |||
Remarks: We can accept customers' requirements to make non-standard products with different specifications and models, and the doors and windows can be made of different shapes and grades of glass, such as tempered glass, fireproof glass and bulletproof glass.
Usage

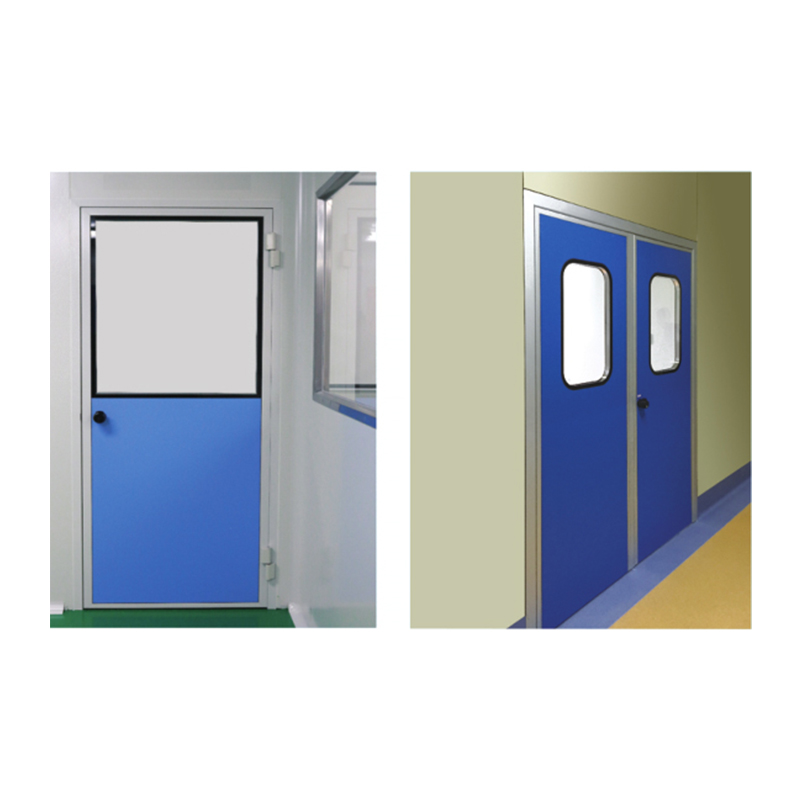

Suitable for clean doors in hospitals, electronics, pharmaceuticals, biology, food and other clean sterile and dust-free workshops, as well as business doors in non-clean areas.
Characteristics
The clean door of diamine ester plate adopts the standard plate with fire resistance grade B, non-toxic, tasteless and harmless; it has the qualities of anti-bacteria, fire-resistant, wear-resistant, scratch-resistant, moisture-resistant and impact-resistant; it has no capillaries, pollution-resistant and easy to be cleaned up and maintained; it has a variety of colours to choose from, and the colours don't fade away, and lasts for a long time as if it were new, and so on. The door frame is surrounded by aluminium alloy double sealing material, with good sealing performance, high strength, easy to open, flexible installation and beautiful features.
Surface Material Characteristics
Diamine resin board has professional antibacterial, stain resistance, water resistance, moisture resistance, heat resistance, weather resistance, drug resistance, abrasion resistance, impact resistance and easy to clean and maintain the characteristics of a full range of plain colours, commonly used surfaces: matte silk surface, brushed surface, matte orange surface, glossy surface and so on.
Installation

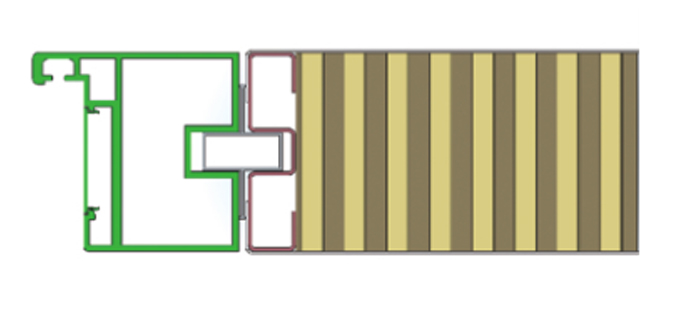

Connect with the middle aluminium connector, then use the fasteners (drilling screws provided by our company) to fix, pay attention to keep the installation level and verticality, then use the special decorative strips to cover it, and then use the special silicone sealing around the door frame to keep the integrity and aesthetic properties.
