Specificities
■Power beam wall-out design for healthier installation and maintenance.
■Embedded anti-collision belt, smooth and straight surface.
■Door body automatic sinking design, maximum sinking distance 15mm, airtightness is stronger.
Technical parameters
DOOR WIDTH | Door opening width +80 | DOOR HIGHT | Door opening width +20 |
DOOR THICKNESS | 42mm | DOOR WEIGHT | 60KG |
SUPPLY VOLTAGE | AC220±10%, 50-60Hz | OPENING HOURS | 2-20S (adjustable) |
OPENING SPEED | 250-500mm/s (adjustable) | CLSEING SPEED | 250~500mm/s (adjustable) |
MANUAL THRUST | <100N | TIGHT CLOSING FORCE | >70N |
POWER CONSUMPION | <150W | WORKING TEMPERATURE | -20°C~+50°C |

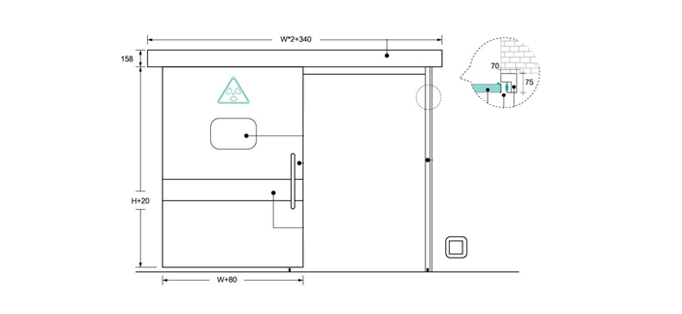

Structural diagram
