Usage

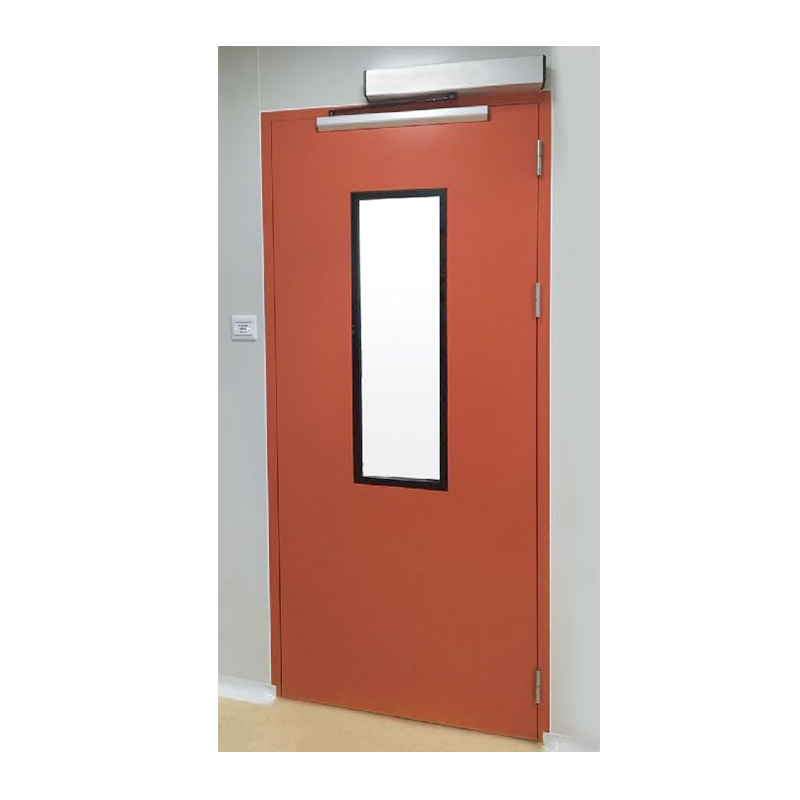

Equipped with an electronic door opener, and intelligent control of the door running open and close, the door angle can be set arbitrarily, but also according to customer requirements to choose a variety of control methods, such as infrared, remote control, access control, swipe card, head sensors, foot sensors, etc., to meet the individual needs of different customers.
Features
■The electronic door opener has anti-pinch performance. When encountering an obstacle, the door will automatically rebound and open quickly to avoid pinching incidents.
■Adopting a high-efficiency drive device and DC brushless motor with small volume and large torque, it runs freely, opens and closes softly, brakes smoothly, saves energy, and protects the environment.
■ Applicable to a variety of occasions and the needs of the environment, but also can be connected to wired access control and wireless access control, set the regional authority supervision.
Technical parameters
Door thickness | 50mm~100mm |
Thickness of door frame | Customised according to customer's wall thickness |
Door frame material | Painted steel, stainless steel, aluminium alloy |
Door material | 1.0mm galvanised steel plate, stainless steel plate, etc. |
Surface treatment | Electrostatic powder coating, PVC cladding process |
Door opener opening range | 70 degrees~115 degrees |
Holding time | 0.5~10 seconds |
Opening speed | 15~45cm/s |
Closing speed | 10-43cm/s |
