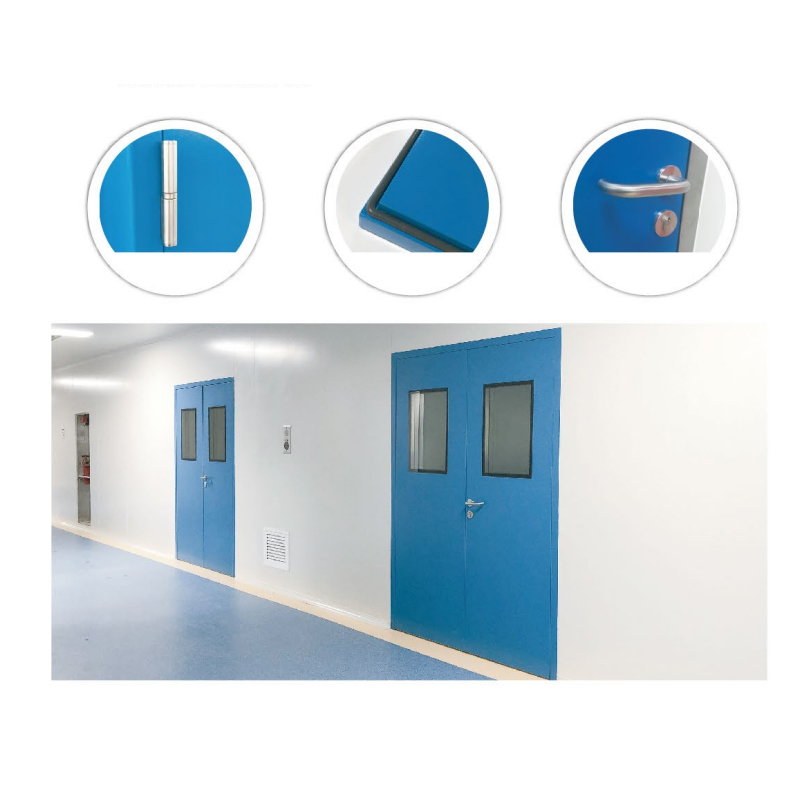

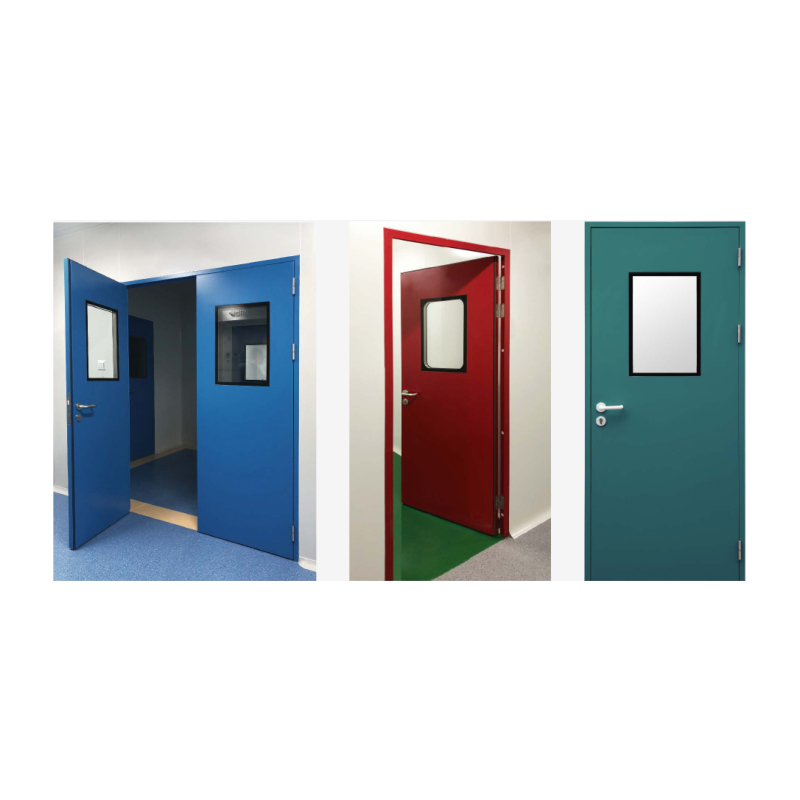

Flat Frame Painted Steel Clean Door

Steel door frame and door plate are used in conjunction with the system mode of operation, the surface of the electrostatic spray treatment, product has no splices, no welded joints, no dead ends, the overall smooth, easy to clean, no accumulation of dust; three sides of the door using high-grade rubber sealing strips, the bottom of the choice of automatic lifting sweeping strips, airtight, and effectively ensure that the purification of indoor effect; observation window using double-layer toughened glass, surrounded by two centimetres of printing black (white), glass and door surface flush, that is, sealed, firm, and beautiful; door thickness 40mm, 50mm, the core material using high strength fire retardant core material filling, in full compliance with the requirements of the purification workshop fire. The glass is flush with the surface of the door plate, that is, sealed, firm, and beautiful; the thickness of the door plate is 40mm and 50mm, and the core material is filled with high-strength flame-retardant core material, which is in full compliance with the fire prevention requirements of the purification workshop.This door is suitable for the installation of ,50, 100mm handmade color steel plates and civil engineering walls of various sizes. The door frame and the wall are connected with aluminum profiles, which is easy to operate. The door frame is flush with the walls on both sides. Whether in terms of strength or aesthetics, it is the preferred size for clean rooms. Product size, material and special requirements can be customized according to customer needs.

Get A Quote

Download

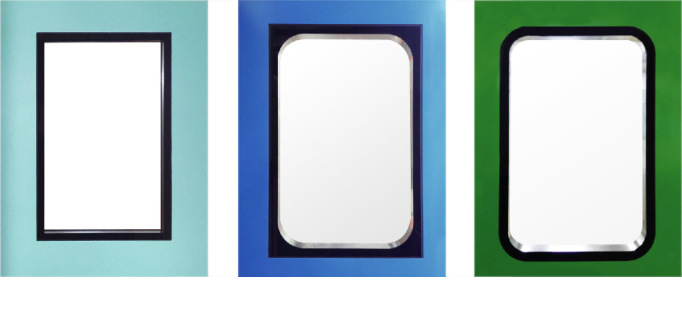

Regular Windows For Doors

＊The regular size of the door window is: 400*600mm (can be customized according to customer's needs);

＊Screen printing around the window is: black, and white, the inner frame can be selected color according to customer requirements;

Technical parameters

Door frame shape	Flat frame, wrap-around frame, clamping type, plug-in type (customised according to customer requirements)				Door thickness:40mm,50mm
Material	Electrolytically galvanised steel sheet with 1.5mm door frame, 1.0mm door panel and 1.2mm inner reinforcement plate.
Filling	Flame retardant paper honeycomb		Fire-retardant aluminium honeycomb	Rock wool	Polyurethane foam
Door Window	Square glass		Oval glass	Outer square and inner round glass	Single and double glazing
Hardware	Locks: Split actuator locks, continuous actuator locks, elbow pressure locks, escape locks, bumper locks, etc.
	Hinges: dismantling type, half-hidden adjustable type, spring hydraulic type, hidden type, etc.
	Sealing device: self-adhesive door leaf, embedded type of door frame, and automatic lifting type of door bottom.
Surface treatment	Spraying (outdoor fluorocarbon powder, electrostatic powder), baking paint, paint-free (the colour can be customized to meet the needs of users).
Wind pressure resistance P3(KPa)	2.8	Pneumatic	100.8KPa	Air tightness performance	q1=1.0	-q1=0.6
				q(m3/(m-h))	q2=2.1	-q1=1.5
Door weight m²/KG	Paper honeycomb core		Aluminium honeycomb core	Rock wool core	Polyurethane core
	21.5KG		22.3KG	24.5KG	26.0KG

Remarks: We can accept customer's demand to make non-standard products with different specifications and models, and the doors and windows can be selected with different shapes and grades of glass, such as: toughened glass, fireproof glass, bullet-proof glass.

Usage

Suitable for color steel plates, civil engineering walls, light steel keel structures, etc.

Characteristics

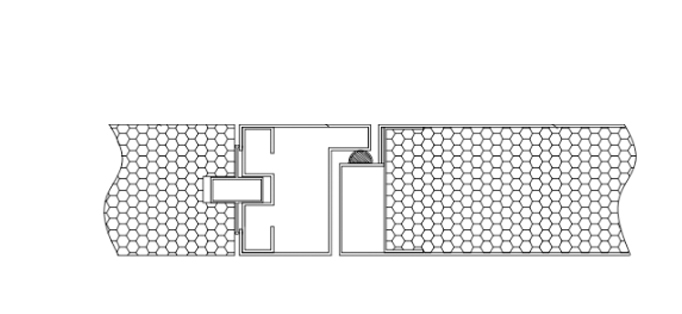

It has good sealing, high strength, easy to open, and flexible installation, the door frame and color steel plate connected with the middle word aluminum, flush with both sides of the wall, the thickness of the partition wall, product size, material, and special requirements can be customized according to the use of requirements.
