Model：BXG-50-100 type
Specification: conventional, non-standard, can accept special requirements of the user design
Material: door frame is made of SUS304 stainless steel brushed plate; door page is made of SUS304 stainless steel brushed plate, colour steel plate, electrolytic plate, cold rolled plate.
Filling: flame retardant paper honeycomb, aluminium honeycomb, rock wool core, polyurethane foam.
Windows: square, oval, single glass, double printed glass
Surface: baking paint, paint-free, plastic spraying, electrophoresis, brushed, polished
Hardware: stainless steel hinges, A6 fireproof locks, SS steel locks, ball locks.
Seal: compression type leather strip, door lift sealing strip
Colour: brushed, electrophoresis, dark blue, teal, etc. Custom-made can be accepted.
Technical parameters

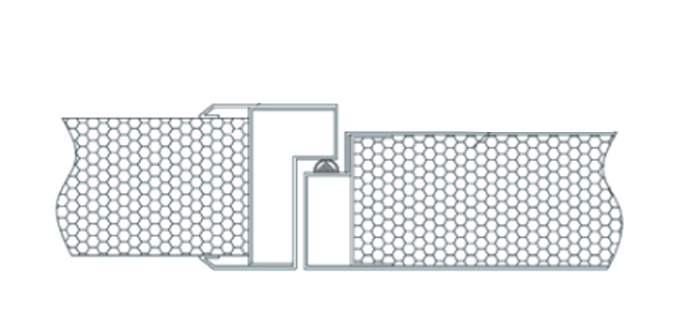

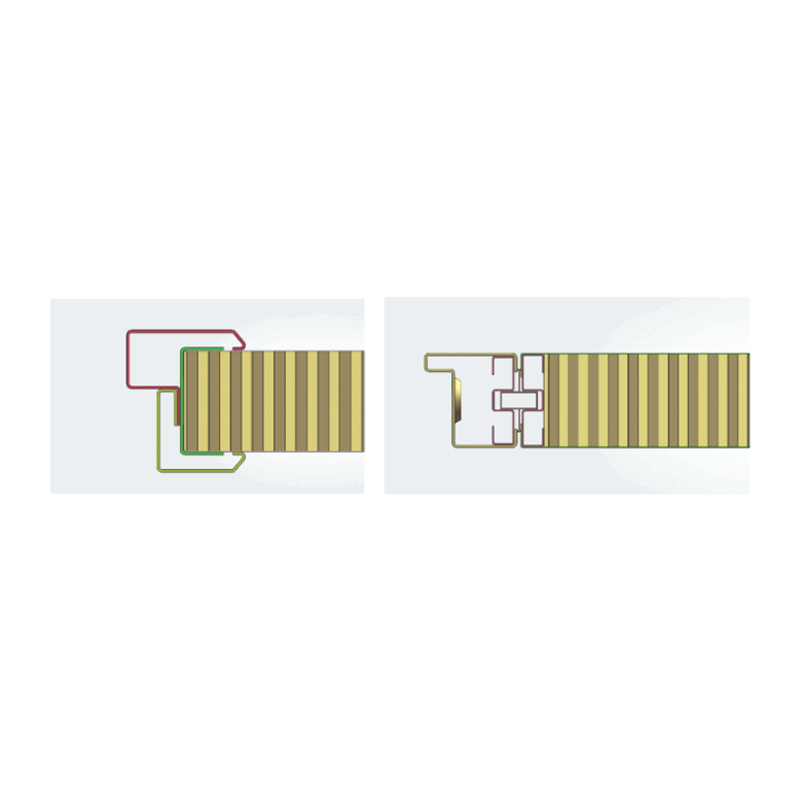

| Door Frame Shapes | Flat frame type, wrapped frame type, pair of clamping type (according to customer requirements) | |||
| Door Style | Single door, double door, mother and son door, door in door | |||
| Material | 304# Fingerprint-resistant stainless steel Door frame:1.2mm, door leaf 1.0mm | |||
| Filler | Flame retardant paper honeycomb | Fire-retardant aluminium honeycomb | Rock wool | Polyurethane foam |
| Hardware fittings | YT--Standard configuration Can be configured according to customer requirements | |||
Remarks: We can accept customer's demand to make non-standard products with different specifications and models, and we can choose different shapes and different grades of glass for doors and windows, such as: tempered glass, fireproof glass, bulletproof glass.
The doors and windows can be made of different shapes and grades of glass, such as toughened glass, fireproof glass and bulletproof glass.
Usage: Suitable for pharmacy, electronics, food, biology, hospital operating room, ICU, and so on.
Features:

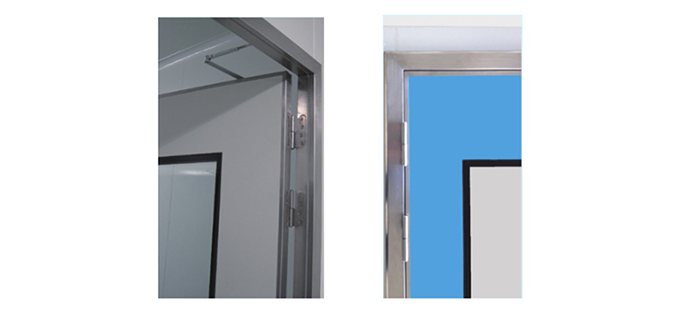

It has the features of good airtight performance, high strength, easy to open, flexible installation, beautiful, and so on, and can be made according to the thickness of the partition wall with different specifications, especially suitable for brick walls and color steel plate connection parts.
